Practical Target Guns: Kimber And Springfield Go Head to Head

Finicky adjustable sights are often the weakness of target guns that seek to cross over to more dangerous work, but in the Gold Target and Loaded Target tested here, those were not an issue.

0

In this installment, we pit two practical target guns against each other. By practical target guns we mean accurate and useful 1911 handguns suitable for personal defense, hunting, and some forms of competition. They are not so specialized that they are not holster guns or unreliable for general use. Some target guns simply are not as robust as these handguns. Fragile sights that overhang the slide too far, as an example, are counterintuitive in an all-round packing gun. If an adjustable sight loses its zero in competition, you will lose the match. Losing zero in a personal-defense situation carries a stiffer penalty for failure. Getting down to the nitty-gritty, fiber-optic front sights are not always desirable in a hard-use handgun because they tend to be fragile, even if they deliver superior targeting performance.

On the other hand, a service pistol or a hunting pistol with adjustable sights is desirable given the wide range of bullet weights and velocity available with the 45 ACP cartridge. Gun Tests readers already know that the 1911 Government Model platform is a versatile, go-anywhere do-anything handgun; but the question is, can target performance translate to defensive reliability and handling?

Target Gun Background

When the National Matches got into full force after World War One, improvements were undertaken on the 1911 handgun. Barrels were welded up and carefully fitted, and high-profile sights were fabricated. These improvements led to the Colt National Match pistol’s introduction in 1933. The National Match featured a hand-honed action and two-way adjustable sights. Law officers and outdoorsmen also adopted this relatively expensive handgun. Changes and modification led to the Colt Gold Cup. The sights were fragile in many renditions — not the case in the newest models — so the shooter wishing to own a service-grade handgun with target sights had to take the custom route. Expedients, such as fitting Smith & Wesson revolver sights to the 1911 slide, were not always successful, but the Bo-Mar sight was an excellent addition to any 1911.

High-visibility adjustable sights are a good thing to have, provided they are reliable in keeping zero, are not fragile, and aren’t likely to be damaged. Today, we have the best adjustable-sight 1911 pistols yet from the factory, and our two tests guns put them to excellent use. Here’s how they performed.

Kimber Gold Match II 45 ACP, $1311

GUN TESTS GRADE: A

The Gold Match II offered an excellent trigger action, truly crisp and controllable, excellent accuracy, and sights that offered good adjustment. It was more accurate than the Springfield. The Kimber was reliable, and its final fit and polish were flawless. Still, we felt that the Springfield offered a couple of superior features for much less money.

Kimber Gold Match II 45 ACP

ACTIONSemi-auto, locked breech single action
OVERALL LENGTH8.5 in.
OVERALL HEIGHT5.4 in.
MAX WIDTH1.5 in.
WEIGHT UNLOADED39 oz.
WEIGHT LOADED43.5 oz.
BARREL LENGTH5 in.
BARRELSteel, 1:16 twist
MAGAZINE8 round detatchable box
SLIDESatin silver Kimpro, stainless steel
FRAMESatin silver Kimpro, stainless steel
FRAME FRONT STRAP HEIGHT2.6 in.
FRAME BACK STRAP HEIGHT3.2 in.
GRIPSDouble-diamond checkered rosewood
GRIP THICKNESS1.3 in.
GRIP CIRCUMFERENCE5.4 in.
SIGHTSAdjustable
TRIGGER PULL WEIGHT SINGLE ACTION4.25 lbs.
TRIGGER SPAN SINGLE ACTION2.5 in.
SAFETYAmbi slide lock safety, grip safety
WARRANTY1 year
CONTACT(888) 243-4522
WEBSITEKimberAmerica.com

This price is also from Bud’s Gun Shop. Though we test each handgun on its own merits, at this point we were coming off the Springfield’s run with excellent performance and looking at a handgun that cost $474 more dollars. There had to be superior performance to justify this price increase. The Kimber and the Springfield had been fired in tandem, with each rater taking a turn, during the combat firing phase. The Kimber suffered the same magazine related problems. The Kimber also exhibited the ability to sight the pistol in for any handload on hand. The Kimber is a handsome handgun. The stainless finish is brighter than the Springfield, with better polish. The design of the trigger and hammer differs, but the raters had no clear preference. The mainspring housing of the Kimber is checkered in a different pattern. The cocking serrations are also cut differently, each type has utility.

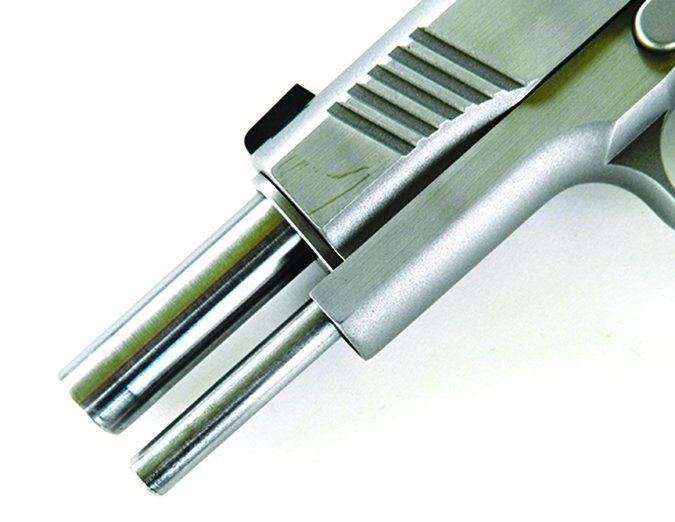

Each handgun features a full-length guide rod. The Springfield’s may be unscrewed for easier disassembly. The sights of the Springfield have a slight overhang over the rear of the slight, noticeable but not anything to affect carrying the pistol. The slide-lock safety of the Kimber worked fine, with a positive indent. We simply like the Armand Swenson-type slide-lock safety of the Springfield better because it is supported by the right-hand grip panel.

Each pistol features a set of grips that are both attractive and serviceable. The Kimber features a firing-pin block that is disengaged by the grip safety. The grip safety of the Kimber works fine, but again we like the Springfield’s memory bump design. The Kimber is supplied with two magazines and no accessories.

At this point, after confirming reliability, the match up was shaping up to be a close call. We liked the Springfield’s slide lock safety and beavertail safety better. The finish of the Kimber is more attractive. The Kimber had one advantage not easily over looked. The Kimber Gold Match features a trigger compression of 4.25 pounds that we noticed was very smooth. The lighter trigger action, coupled with a truly smooth compression, resulted in better performance when firing in combat-style shooting and also in firing at targets at the 100-yard range. The Springfield gave good results with proper trigger control, but the Kimber had an advantage. The single best group of the day off the bench came with the Hornady 200-grain XTP handload, a 1.25-inch group at 25 yards. Trigger compression played a positive role in this performance, we are certain.

Our Team Said: Each handgun gave good performance. There were features that were different, such as the forward cocking serrations, that did the business just as well on one pistol as the other. The significant advantage of the Kimber was its trigger compression. However, for a lot less than $474 dollars, a reputable gunsmith could add a trigger kit to the Springfield and you would still have the superior features and money left over. A Nowlin trigger kit, $145 from Brownells.com (654-012-110WB), is one option.

Springfield PI9132LP Loaded Target 45 ACP, $837

GUN TESTS GRADE: A

The Springfield offered excellent reliability, good accuracy, and sights that offer good adjustment. It is accurate, if not quite as accurate as the Kimber. The grips supplied with the handgun are particularly attractive. All told, the Springfield not only earned a solid A rating, it is a Best Buy.

Springfield PI9132LP Loaded Target 45 ACP

ACTIONSemi-auto, locked breech single action
OVERALL LENGTH8.5 in.
OVERALL HEIGHT5.4 in.
MAX WIDTH1.5 in.
WEIGHT UNLOADED39 oz.
WEIGHT LOADED43.5 oz.
BARREL LENGTH5 in.
BARRELSteel, 1:16 twist
MAGAZINE8 round detachable box
SLIDEStainless steel
FRAMEStainless steel
FRAME FRONT STRAP HEIGHT2.6 in.
FRAME BACK STRAP HEIGHT3.2 in.
GRIPSLaser-cut Cocobolo
GRIP THICKNESS1.3 in.
GRIP CIRCUMFERENCE5.4 in.
SIGHTSAdjustable
TRIGGER PULL WEIGHT SINGLE ACTION5.75 lbs.
TRIGGER SPAN SINGLE ACTION2.5 in.
SAFETYSlide lock safety, grip safety
WARRANTYLifetime
MADE BYSpringfield Armory, USA
TELEPHONE(800) 680-6866
WEBSITESpringfield-Armory.com

This was a recent price listed at Bud’s Gun Shop. To be clear, Gun Tests does not have a commercial affiliation with Bud’s, but the gun seller often has among the lowest prices we find online, and several Gun Tests readers have spoken favorably about their dealings with Bud’s.

The Springfield Loaded Target (we call it the Loaded Model Target, Springfield aspires to more brevity) is a Loaded Model with adjustable sights. Comparison to other Loaded Model handguns on hand doesn’t seem to indicate superior fit or a better trigger action, only the addition of adjustable sights. The Loaded Model features included a beavertail grip safety, ambidextrous safety, a full-length guide rod, and forward cocking serrations, as well as a target trigger.

Beyond those elements, the Springfield Loaded Target featured highly developed monolithic adjustable sights. They are similar to the legendary and out-of-production Bo-Mars. These are the same sights we have previously tested with the Springfield 9mm Loaded Target and the Range Officer. While each handgun was tested on individual merits, these sights have earned a good reputation among Gun Tests raters. The range of elevation and windage adjustment is quite large, allowing regulation of point of aim and point of impact with projectiles from 165 to 260 grains at 25 yards. One of our raters is an enthusiastic handloader and enjoyed the task of confirming the utility of these sights while testing a number of his handloads. Compared to the Kimber, the Springfield sights extended very slightly more toward the rear of the frame. The front post of the Kimber is slightly longer.

The barrel ramp exhibited the proper 1⁄32-inch gap between the two halves of the feed ramp to ensure proper feeding. The pistol fed wide-mouth hollowpoints, lead semi-wadcutter loads, and even the button- type 185-grain SWC target loads, so in our view, feed reliability is not an issue.

The pistol exhibited excellent fit and finish. The stainless-steel Loaded Target presented a matte-stainless exterior versus the high-polished-stainless cosmetics of the Kimber, but it showed a serviceable appearance. The grips were excellent. The laser engraving was attractive, and the cocobolo grips matched the stainless frame well. Trigger compression was good, with a clean break at 5.75 pounds. The grip safety properly releases its hold on the trigger about halfway into its travel. We liked the Memory Groove beavertail safety of the Springfield more than the simpler design of the Kimber. The pistol was supplied with two magazines, a plastic range holster, and a plastic dual-magazine carrier. The pistol was inspected for tool marks and fit and finish, and then lubricated. The Springfield magazines were supplemented by Brownells 7- and 8-round magazines and Chip McCormick PowerMags.

For draw-and-fire exercises, we loaded the magazines with Black Hills Ammunition 230-grain full-metal-jacket rounds. The initial combat sets included drawing from a Ted Blocker X 16 holster. The targets were placed at 5, 7, and 10 yards. The Springfield was run at speed, firing double taps, controlled pairs, and hammers. The pistol was fast to get on target and cleared leather as quickly as any other 5-inch 1911s we’ve tested. During firing of 50 rounds of 230-grain FMJ loads, there were three short cycles. However, we experienced the same problem with the Kimber and traced this problem to a Chip McCormick PowerMag. So, each pistol suffered a spate of failures to lock that may have been a break-in malfunction, but more likely were the result of a factory-new magazine with a weak spring. It pays to check your equipment, and this was no exception. There is no starting over to check for break-in malfunctions, but the Springfield did not fail to function during the sighting-in phase otherwise.

The loads tested in both pistols included Cor-Bon 165-grain PowerBall factory loads (1250 fps); a handload of a 185-grain Hornady XTP over Titegroup powder (980 fps); a 200-grain XTP over WW 231 powder (1050 fps [+P]); a 230-grain Oregon Trail roundnose lead bullet over WW 231 powder (790 fps); a 230-grain XTP propelled by Unique powder (872 fps); and a 260-grain NWCP Woodshed bullet running at 780 fps.

We fired 10 to 12 rounds of each handload and the Cor-Bon factory load in both pistols and determined that each could be sighted-in properly for the full range of bullet weights on hand. We were at just over 100 rounds when we had malfunctions that also occurred with the suspect magazine in the Kimber. The pistol was cleaned and lubricated and then fired another 50 rounds on silhouette targets from 15 to 100 yards, and also firing at pine combs and such at the far end of the range on the berm.

The ammunition used in the practical accuracy testing was among the most accurate combinations ever fielded, an old-standard handload using the Hornady 230-grain XTP bullet over Unique powder for 872 fps. Results were good to excellent. This is a fine shooter and a good outdoors handgun. There were no malfunctions of any type.

The barrel was cleaned before the benchrest shooting exercise. A load one of our raters has used to take deer, using the Hornady 200-grain XTP, was included, along with two factory loads, the Black Hills 230-grain JHP along with the HPR 185-grain JHP load. Accuracy was consistent, with the single best group of 1.6 inches with the 200 grain XTP load. The factory loads also provided good performance.

Our Team Said: The Springfield Loaded Target is a reliable handgun with good accuracy. The pistol is a good buy. We liked both the reinforced ambidextrous slide lock safety and the beavertail safety of the Springfield better than the Kimber, though we liked the Kimber sights and trigger action better. However, as we added up features we liked better, the Springfield Loaded Target rose to the top.

Range Data

Handload 200-gr. Hornady XTPSpringfield Loaded TargetKimber Gold Match II
Average velocity980 fps1011 fps
Muzzle energy386 ft.-lbs.402 ft.-lbs.
Smallest group1.4 in.1.3 in.
Largest group2 in.1.6 in.
Average group size1.7 in.1.5 in.
HPR 185-gr. JHP
Average velocity970 fps990 fps
Muzzle energy480 ft.-lbs.500 ft.-lbs.
Smallest group2 in.1.8 in.
Largest group2.4 in.2.1 in.
Average group size2.2 in.1.9 in.
Black Hills 230-gr. JHP
Average velocity860 fps871 fps
Muzzle energy377 ft.-lbs.387 ft.-lbs.
Smallest group1.8 in.1.5 in.
Largest group2 in.1.8 in.
Average group size1.9 in.1.6 in.

Notes: Average velocity readings were recorded by firing five-shot strings over a Competition Electronics Pro Chrono. The muzzle was 10 feet from the first skyscreen. Ambient temperature:45 degrees. Elevation: 815 feet above sea level. The accuracy figures are the average of three five-shot groups. For accuracy, we fired the test gun from a benchrest at a 25-yard target.

Written and photographed by R.K. Campbell, using evaluations from Gun Tests team testers.
